Self-Service Pickup Locker

Retail BOPIS Click-and-Collect Pickup Locker with Open API

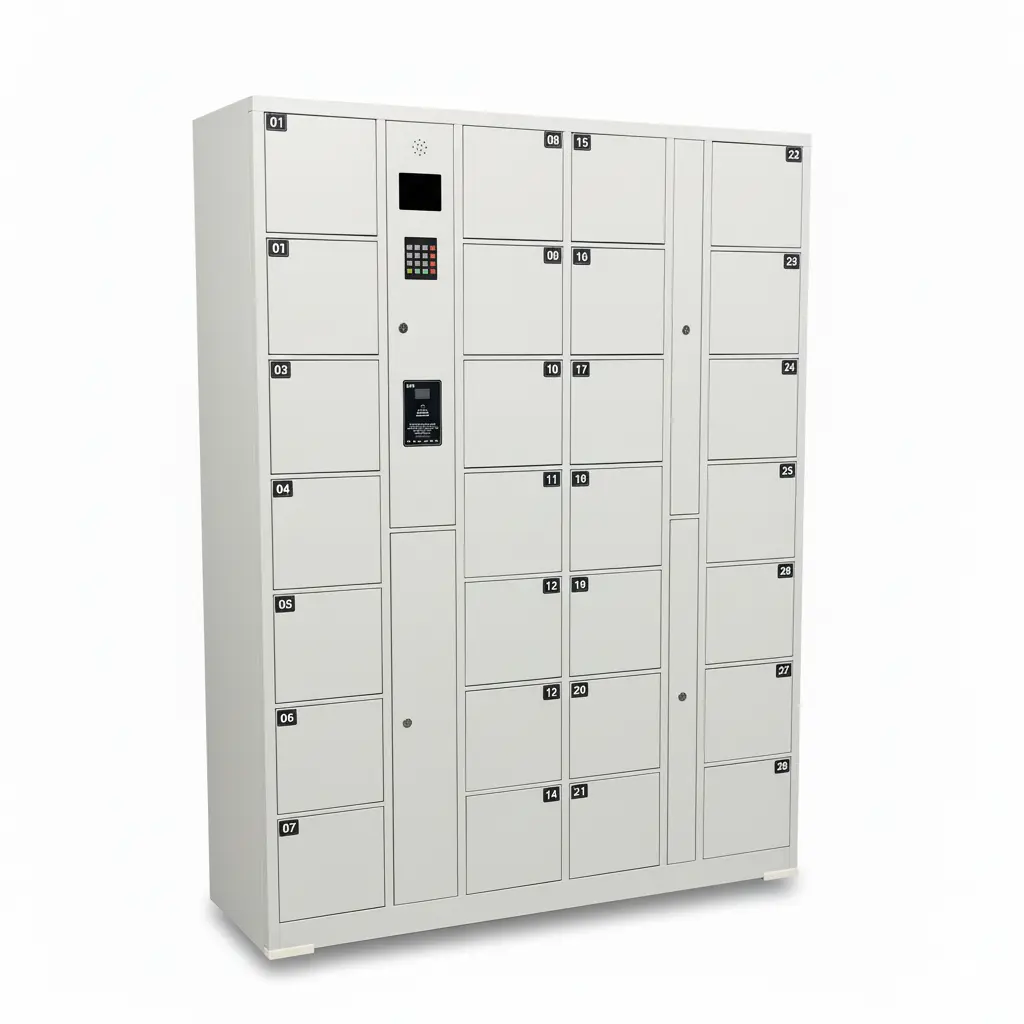

retail BOPIS pickup locker for click and collect online orders, front view

Smart pickup locker for retail stores running Buy Online, Pickup In Store (BOPIS) — staff load customer orders, SMS code unlocks, customer self-collects. Open API to integrate with your e-commerce platform or POS system.

Cabinet Material
1.0mm cold-rolled steel with anti-rust powder coating
Touchscreen
7-inch capacitive (default) or 10-inch upgrade
Compartment Mix
Configurable; default 6 small + 6 medium + 3 large
Lock Type
Electronic deadbolt, 100,000-cycle rated
Connectivity
WiFi 2.4/5GHz, optional 4G LTE
Power
AC 110-240V, 50/60Hz, ~80W standby
Price
400-700 USD
Delivery
Around 20 days
WhatsApp

Reply within 24 h · OEM / ODM and custom sizes available

Specifications

Cabinet Material
1.0mm cold-rolled steel with anti-rust powder coating
Touchscreen
7-inch capacitive (default) or 10-inch upgrade
Compartment Mix
Configurable; default 6 small + 6 medium + 3 large
Lock Type
Electronic deadbolt, 100,000-cycle rated
Connectivity
WiFi 2.4/5GHz, optional 4G LTE
Power
AC 110-240V, 50/60Hz, ~80W standby
Operating Temp
0°C – 40°C (indoor)
Notification
SMS (default), Email and WhatsApp optional
API
REST + Webhook + reference SDK (Node.js, PHP)
Warranty
1 year hardware, free remote software support

Features

  • 30-second associate load workflow with auto-compartment assignment
  • Automatic SMS pickup code, no app required for customers
  • Open REST API to connect your e-commerce, OMS or POS — integration scope confirmed per project
  • REST API and SDK for custom OMS and headless commerce integration
  • Modular small/medium/large compartments — reconfigurable per store
  • 7" or 10" touchscreen with retail brand customization
  • WiFi or 4G connectivity, indoor steel cabinet with anti-rust coating

Applications

  • Apparel and footwear stores running click-and-collect
  • Electronics retailers with in-store online order pickup
  • Bookstores, gift shops, and specialty boutiques
  • Department stores piloting BOPIS programs
  • Big-box retailers offering same-day pickup
  • Cosmetics and personal care retail BOPIS counters

Overview

Built for Retail BOPIS and Click-and-Collect Workflows

Linqu's retail pickup locker is purpose-built for stores running Buy Online, Pickup In Store (BOPIS) and click-and-collect programs. Unlike multi-carrier parcel lockers, this system is store-driven: your associate picks the online order, places it in any free compartment, types in the customer's phone number, and the system sends a one-time SMS pickup code. The shopper walks in, types the code on the touchscreen, and the door opens. No queueing, no associate handoff, no missed pickups.

retail BOPIS pickup locker installed near checkout counter for click and collect orders

Store Associate Workflow — 30 Seconds Per Order

  • Pick the online order from your fulfillment queue (e-commerce admin / POS terminal)
  • Tap "Load to Locker" on the locker touchscreen — system auto-assigns a free compartment
  • Scan the order barcode or type the customer phone number
  • Place the bag inside, close the door, done
  • SMS pickup code goes out automatically; order status flips to "Ready for Pickup" in your storefront

Customer Pickup Flow — No App Required

Customers receive an SMS the moment their order is loaded. No app download, no account login, no scanning a complicated QR. They walk to the locker, type the 6-digit pickup code, and the assigned compartment opens. The whole pickup takes under 15 seconds. Optional QR code pickup and phone-number verification are available for higher-value orders.

customer entering SMS pickup code on retail BOPIS locker touchscreen to collect online order

E-Commerce and POS Platform Integration

An open REST API lets you connect the locker to your existing e-commerce platform, OMS or POS. There are no ready-made plugins for specific platforms; integration scope is confirmed per project.

  • Order load — your order system creates locker load tasks when an order is ready
  • Status sync — pickup events update the order status in your system
  • Pickup logs — load and pickup records available via the API for reconciliation

Hardware Configuration

Modular column design lets you mix box sizes per order profile. Default mix: small (apparel, accessories), medium (boxed goods, electronics), large (multi-item bags). 7-inch or 10-inch capacitive touchscreen, electronic locks rated for 100,000+ cycles, WiFi or 4G connectivity, indoor-rated steel cabinet.

Why Retailers Choose Linqu for BOPIS

  • 20,000 sqm in-house factory — full hardware-software stack from one vendor
  • OEM/ODM customization — color, logo, screen branding, compartment layout
  • Documented API + reference SDK so your dev team can integrate in days, not months
  • One year hardware warranty, MOQ of one unit for pilot stores

FAQ

How does the BOPIS workflow differ from a parcel locker?

A BOPIS pickup locker is store-driven — your associates load already-paid online orders into the locker after picking them in your store or back-of-house. A parcel locker is courier-driven, used for last-mile package delivery from carriers like UPS, USPS, and FedEx. The two workflows, software, and customer notifications are different.

Can the locker connect to my existing e-commerce platform or POS?

Yes, through our open REST API, which covers order loading, status sync and pickup records. The customer SMS goes out automatically once an order is loaded. There is no ready-made plugin for any specific platform; integration scope is confirmed per project.

What if a customer does not pick up their order?

The system sends configurable reminder SMS at 24 / 48 / 72 hours. If the order remains uncollected past your threshold, an associate can remotely retrieve it via the admin dashboard and reshelve it. All events are logged.

Can we customize compartment sizes for our product mix?

Yes. The cabinet is fully modular. Most apparel retailers go heavy on small/medium compartments. Electronics retailers add large compartments for boxed goods. We can quote any mix.

What is the minimum order quantity?

MOQ is one unit. We support pilot deployments and scale-out from a single proof-of-concept store to a chain-wide rollout.
