Outdoor Weatherproof Smart Parcel Locker | IP65 Protection | 4G LTE Connectivity | Anti-Rust Steel Cabinet
LinQu's IP65-rated outdoor smart parcel locker is engineered for community gates, rural delivery stations, and open-air complexes where weather, vandalism, and absent wired networks are daily realities. Powder-coated anti-rust steel, optional canopy, UV-resistant touchscreen, and built-in 4G/LTE connectivity ensure reliable 24/7 parcel delivery with zero infrastructure dependency. Request a quote today.
Product Overview
Outdoor parcel delivery presents a fundamentally different challenge from lobby or indoor installations. Rain, direct sunlight, temperature swings from sub-zero winters to 50 °C summer heat, and the absence of a wired internet connection all conspire to make conventional indoor lockers fail within months when exposed to the elements. Couriers need a drop-off point that works at 2 AM in a rainstorm just as reliably as it does on a calm afternoon — and residents expect to retrieve packages without ever contacting building management.

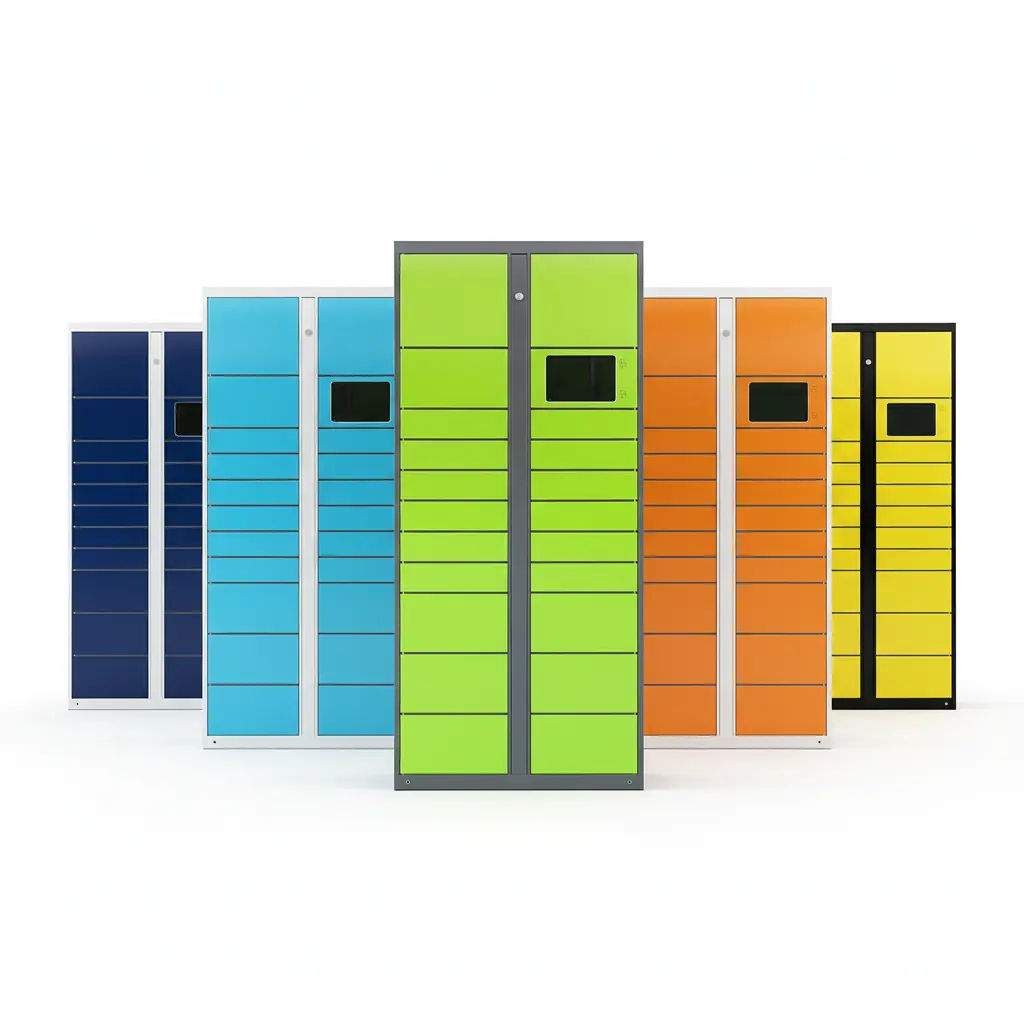

LinQu's Outdoor Weatherproof Smart Parcel Locker is purpose-built to answer every one of those demands. The cabinet is fabricated from heavy-gauge cold-rolled steel with a multi-layer powder-coat finish that resists surface rust even in coastal salt-air environments. An IP65 ingress-protection rating means the electronics are completely sealed against dust and sustained water jets — not just light rain. A UV-resistant industrial touchscreen stays readable in full sunlight, and an integrated 4G/LTE module provides cloud connectivity at any site, eliminating the need to trench data cables or negotiate building Wi-Fi access.
From gated residential communities and rural collection stations to open-air transit hubs and campus perimeters, this locker operates continuously across climates and connectivity conditions that would compromise any indoor-grade cabinet. Optional canopy attachments provide additional shade and rain protection for the courier interaction zone, extending screen and keyboard life in the most exposed installations.
Built for the Outdoors — Technical Specifications
| Specification | Detail |
|---|---|
| Ingress Protection Rating | IP65 (dust-tight; protected against sustained water jets from any direction) |
| Cabinet Material | Heavy-gauge cold-rolled steel (1.2–2.0 mm), reinforced frame |
| Surface Coating | Multi-layer powder coat (anti-rust, anti-corrosion, salt-spray tested ≥ 500 h) |
| Operating Temperature | -25 °C to +55 °C (-13 °F to +131 °F) |
| UV Resistance | UV-stable coating + UV-rated industrial touchscreen panel (2,000+ hours UV test) |
| Wind Load | Rated for sustained winds up to 120 km/h when anchor-bolted to concrete base |
| Power Supply | AC 110V–240V (standard); solar panel + UPS backup (optional) |
| Connectivity | 4G/LTE (primary, SIM-based, no wired network required); Wi-Fi / Ethernet (optional) |
| Lock Type | IP65-sealed electronic lock with physical backup override |
| Screen Type | 7-inch or 10-inch UV-resistant industrial touchscreen, ≥ 700 nit brightness for outdoor readability |
Indoor vs. Outdoor Parcel Locker — Why It Matters
| Comparison Factor | Standard Indoor Locker | LinQu Outdoor Locker |
|---|---|---|
| Weather Resistance | Not rated; exposed components corrode and fail within months outdoors | IP65 full enclosure — dust-tight and jet-water resistant; electronics sealed against all weather |
| Installation Location | Lobby, mailroom, or climate-controlled indoor space only | Community gates, open parking areas, rural stations, transit hubs — any exposed outdoor site |
| Connectivity | Requires building Wi-Fi or wired Ethernet — impossible at remote/rural sites | Built-in 4G/LTE SIM module — operates independently of any building network infrastructure |
| Maintenance Frequency | Low in controlled environments; high if accidentally exposed to moisture or dust | Designed for low maintenance — sealed construction, anti-rust coating, and remote diagnostics via cloud |
| Structural Durability | Standard-gauge steel adequate for indoor; no wind-load or vandal-resistance rating | Heavy-gauge steel, anchor-bolt base, wind-load rated to 120 km/h, anti-pry door hinge design |
| Use Cases | Apartments, offices, hotels, hospitals — enclosed buildings with stable environment | Gated communities, rural delivery points, campus perimeters, open-air retail parks, transit stops |
Common Questions About Outdoor Parcel Lockers
What is the operating temperature range, and can the locker function in extreme climates?
The LinQu outdoor parcel locker is rated for operating temperatures from -25 °C to +55 °C (-13 °F to +131 °F), covering subarctic winters and desert-summer heat alike. The electronics housing uses sealed thermal management to prevent condensation during rapid temperature swings, and the high-brightness industrial touchscreen maintains full readability across this entire range. For environments below -20 °C, an optional internal heating element can be added to protect lock actuators and the display controller.
Does the outdoor locker support solar power, and what happens during a grid outage?
Yes — a solar panel mounting bracket and compatible charge controller are available as an optional accessory, making the locker fully off-grid for low-power sites such as rural collection points, park-and-ride locations, or areas with unreliable grid supply. Standard units run on AC 110V–240V with an optional UPS battery backup that maintains full operation (including electronic locks and 4G uplink) for 4–8 hours after a grid interruption. During any power interruption, couriers and recipients receive real-time status notifications via the cloud platform.
How does the locker resist vandalism and forced entry in unsupervised outdoor locations?
The cabinet uses heavy-gauge cold-rolled steel (1.2–2.0 mm wall thickness) with an anti-pry recessed door hinge design that eliminates external lever points. Lock bolts engage multi-point hardened steel deadbolts, and the overall structure is anchor-bolted to a concrete footing — making tipping or relocation attempts impractical. The touchscreen is protected by industrial-grade toughened glass with an anti-scratch coating. An optional stainless-steel anti-vandal keypad provides an additional PIN-entry surface rated for physical impact. All physical events (failed unlock attempts, vibration alerts) are logged and push-notified to administrators in real time via the cloud dashboard.
Can the locker be installed on unpaved ground or uneven outdoor surfaces?
The locker is designed to be anchored to a flat concrete pad, which is the recommended installation method for maximum stability and wind-load performance. For unpaved or temporary sites, an optional heavy-duty steel base frame with adjustable leveling feet can be supplied — this frame distributes load across a wider footprint and can be pinned to compacted gravel or packed earth without a full concrete pour. LinQu provides a site preparation guide covering base dimensions, anchor bolt specs, and minimum soil bearing capacity requirements to ensure a safe and level installation at any outdoor location.
